Product Overview
IMS OEM Replacement Suction Pumps
ADVANTAGES to the IMS Series:
- Dependable, economical OEM replacements
- Not ideal for liquids containing large amounts of foreign matter
- Virtually maintenance-free
- May be mounted above liquid level as well as other locations remote from tank
- 2 foot maximum suction lift
- Five models to provide progressively higher flow rates and head pressures
- Can be combined with tanks to provide a complete, ready-to-install pumping system
Click HERE for our Build-A-System Brochure!
Specifications
Most pumps are available as pump/tank combinations.
IMS08: 1/8 HP, TENV, 3450 RPM, 3/8” NPT horizontal discharge above integral mounting flange
IMS25: 1/4 HP, TEFC, 3450 RPM, 3/4” NPT horizontal discharge above integral mounting flange
IMS50: 1/2 HP, TEFC, 3450 RPM, 3/4” NPT horizontal discharge above integral mounting flange
IMS75: 3/4 HP, TEFC, 3450 RPM, 1” NPT horizontal discharge above integral mounting flange
IMS100: 1 HP, TEFC, 3450 RPM, 1” NPT horizontal discharge above integral mounting flange
Maximum Viscosity: 500 SSU (All Models)
Materials:
Pump Body and Volute: Cast Iron
Shaft: Carbon Steel
Impeller: Plastic

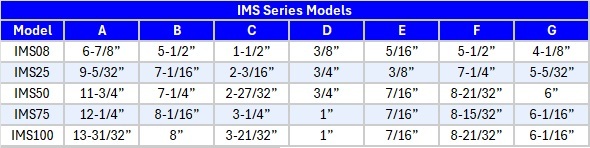

Dimensions And Order Information
| IMS Series Models | |||

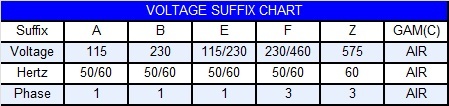

| Model | HP (Kw) | Max Flow | Voltage |
| IMS08 | 1/8 (.09) | 9.5 GPM | E, F |
| IMS25 | 1/4 (.19) | 20 GPM | E, F |
| IMS50 | 1/2 (.37) | 32 GPM | E, F |
| IMS75 | 3/4 (.56) | 43 GPM | F |
| IMS100 | 1 (.75) | 48 GPM | F |
Performance
IMS Series Models
1. IMS100
2. IMS75
3. IMS50
4. IMS25
5. IMS08
