Product Overview
IMV OEM Replacement Vertical Immersion Pumps
ADVANTAGES to the IMV Series:

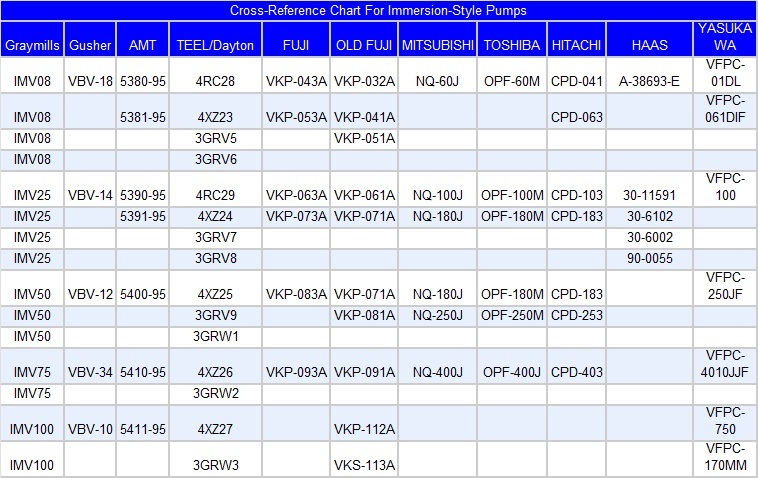

- Dependable, economical OEM replacements
- Ideal for liquids containing fine contaminants
- Virtually maintenance-free
- No bearings or seals in the liquid except 24" and 36" nominal lengths
- Five models to provide progressively higher flow rates and head pressures
- Can be combined with tanks to provide a complete, ready-to-install pumping system
Click HERE for our Build-A-System Brochure!
Specifications
Most pumps are available as pump/tank combinations.
IMV08: 1/8 HP, TENV, 3400 RPM, 3/8” NPT horizontal discharge above integral mounting flange
IMV25: 1/4 HP, TEFC, 3450 RPM, 1/2” NPT horizontal discharge above integral mounting flange
IMV50: 1/2 HP, TEFC, 3450 RPM, 3/4” NPT horizontal discharge above integral mounting flange
IMV75: 3/4 HP, TEFC, 3450 RPM, 1” NPT horizontal discharge above integral mounting flange
IMV100: 1 HP, TEFC, 3450 RPM, 1” NPT horizontal discharge above integral mounting flange
IMV150: 1-1/2 HP, TEFC, 3450 RPM, 1-1/4” NPT horizontal discharge above integral mounting flange
Maximum Viscosity: 500 SSU (All Models)
Materials:
Pump Body and Volute: Cast Iron
Shaft: Carbon Steel
Impeller: Plastic

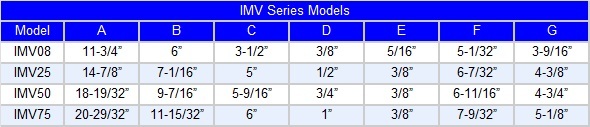

Dimensions And Order Information
Performance
IMV Series Models
1. IMV100
2. IMV75
3. IMV50
4. IMV25
5. IMV08
