Product Overview
TN30H (High Speed) Series Machine Tool Pumps
ADVANTAGES to the TN Series:
- Thin to heavy viscosities – liquids containing abrasives and solids
- Double suction volutes
- Virtually maintenance-free
- No bearings or seals in the liquid except 24" and 36" nominal lengths
- Five Series to provide progressively higher flow rates and head pressures
- High speed “H” models provide the highest head pressures
- Can be combined with tanks to provide a complete, ready-to-install pumping system
Click HERE for our Build-A-System Brochure!
Specifications
Most pumps are available as pump/tank combinations.
TN30: 1/4 HP, 1725 RPM, 1” NPT vertical discharge.
TN30H: 1/2, 3/4, 1, and 1-1/2 HP, 3450 RPM, 1” NPT vertical discharge.
Maximum Viscosity: 500 SSU (All Models)
Materials
Pump Body and Volute: Cast Iron
Shaft: Carbon Steel
Impeller: Double Suction, Celcon®
Special Materials: All TN Series pumps are available with nickel plating, Teflon® coating or stainless steel shafts for extra corrosion and abrasion resistance. Consult factory for special pricing.

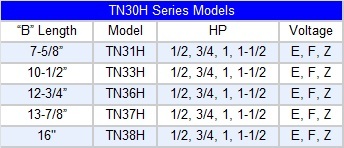

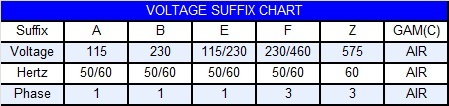

Dimensions And Order Information
Performance
