Product Overview

ADVANTAGES to the TN Series:

Thin to heavy viscosities – liquids containing abrasives and solids
Double suction volutes
Virtually maintenance-free
No bearings or seals in the liquid except 24" and 36" nominal lengths
Five Series to provide progressively higher flow rates and head pressures
High speed “H” and “HH” models provide the highest head pressures
Can be combined with tanks to provide a complete, ready-to-install pumping system

Click HERE for our Build-A-System Brochure!

Specifications

Most pumps are available as pump/tank combinations.

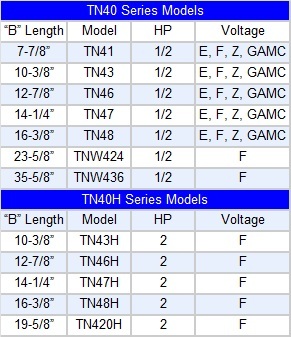

TN40: 1/2 HP, 1725 RPM, 1-1/4” NPT vertical discharge.

TN40H: 2 HP, 3450 RPM, 1-1/4” NPT vertical discharge.

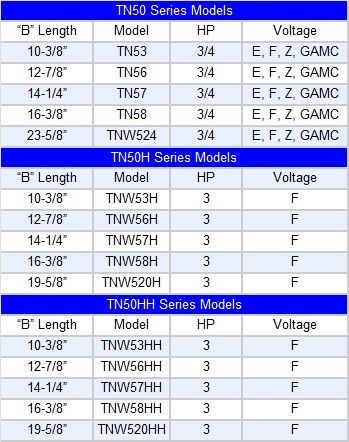

TN50: 3/4 1725 RPM, 1-1/4” NPT vertical discharge.

TN50H: 3 HP, 3450 RPM, 1-1/2” vertical discharge.

TN50HH: The TN50HH has the same specifications as the TN50H, but with a larger diameter impeller to produce higher pressure.

Maximum Viscosity: 500 SSU (All Models)

Materials

Pump Body and Volute: Cast Iron

Shaft: Carbon Steel

Impeller: Double Suction, Celcon®

Special Materials: All TN Series pumps are available with nickel plating, Teflon® coating or stainless steel shafts for extra corrosion and abrasion resistance. Consult factory for special pricing.
